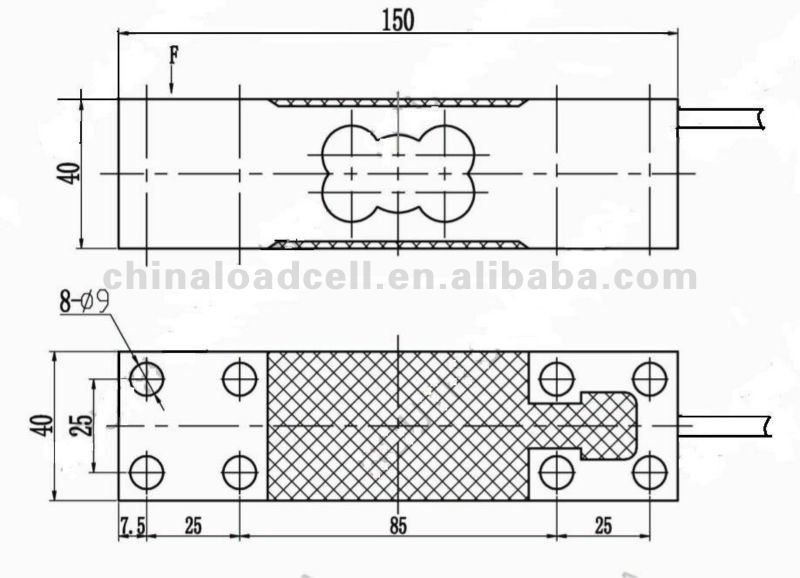

single point aluminum Load Cell /C3 load cell/ 150x40x40mm load cells

FOB Reference Price:Get Latest Price
US $3-15 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HMD
Model Number:
HMD7001C
Usage:
Pressure Sensor
Theory:
Capacitance Sensor
Output:
Analog Sensor
packing:
100pcs/carton
Certification:
ISO9001:2008, Rohs
material:
aluminum
net weight::
0.7kg
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
international standard
Port
Ningbo or Shanghai
Lead Time :
20days








single point alloy steel load cell,High comprehensive precision, strong capacity of overloading and good sealing. Wide working temperature, easy to install and debug. Applied to industry weighing system such as platform scale, hopper balance and crane scale etc.



MODEL

HMD7001C

COMPREHENSIVE ERROR

0.02

0.03

OUTPUT SENSITIVITY            mV/V

2.0±0.25%

NONLINEARITY                      %F.S.

±0.02

±0.03

REPEATABILITY                      %F.S.

0.02

0.02

HYSTERESIS                           %F.S.

±0.02

±0.03

CREEP                           (30min) %F.S

±0.02

±0.03

TEMP. EFFECT ON ZERO     %F.S/10

≤0.002

≤0.003

TEMP. EFFECTOUTPUT   %F.S/10

≤0.002

≤0.003

ZERO OUTPUT                       %FS

   ±1

   ±1

INPUT RESISTANCE                    Ω

400±30

OUTPUT RESISTANCE                  Ω

350±3

INSULATION RESISTANCE             MΩ

≥5000

EXCITATION VOLTAGE     VDC/AC

   5~12V

OPERATION TEMP.  RANGE

     -30+80

OVERLOAD CAPACITY              %F.S.

        150

CAPACITY

300KG



IP67

PERFORMANCE CHARACTERISTIC

TY7001,,,.

The Model TY7001 sensor, is divided into the centre shearing three-beam type and parallel one-word beam type according to the load, simple structure, steady and reliable performance, suitable for electronic commerce scale of single

sensor.





























































PERFORMANCE CHARACTERISTIC



The Model HMD7001C sensor, is divided into the centre shearing three-beam type and parallel one-word beam type according to the load, simple structure, steady and reliable performance, suitable for electronic commerce scale of single sensor.





Company details



with 20 years experiences,We can design and manufacture of hundreds of different kind of load cells:analogy load cell, high temperature load cell, digital load cells and so on, Most of load cells have patent,We guarantee the high quality with competitive price.











QC Team :
QC team with more than 20 professional and technical personnel. To ensure 100% products checking.

Material:  Strictly control of material using, meet international requested standards.

Semi-finished products inspection: Product inspection before 100% finished.

Production line test:  With work team or data engineer who will inspect machines and lines at fixed period.

Finished Product Inspection: Quality and property test before products are packed and loaded.



Certificated Approval :

EWC, CE, WSF, ROHS,We will get the OIML soon...




Gland type optional
