overload/elevator load cell/bridge type weight sensor

FOB Reference Price:Get Latest Price
US $80-170 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HMD
Model Number:
HMD2003
Force:
bypass
Capacity:
1~20t
Output sensiitvity:
2.0±0.25%
Maintenance:
easy
Plating:
nickel or zinc
Application:
lifting machinery wire rope overload
SupplyAbility
SupplyAbility:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export packing or according to your requirement
Port
Ningbo
Lead Time :
20 days receive deposit

Specifications

1, Bypass the force
2, Alloy steel load cell
3, High comprehensive precision
4,Long stability
5,Capacity:1-20t

Weighing bridg type load cell (HMD 2003)

Draft:

.jpg

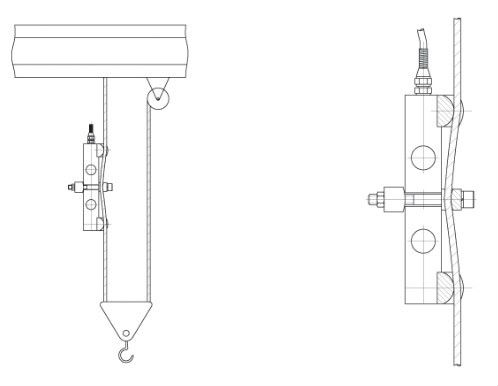

Setting:



.jpg















No



HMD2003

1

Comprehensive error

0.2

2

Output Sensitivity  Mv/V

2.0±0.25%

3

Nonlinearity      %F.S

±0.05

4

Repeatability     %F.S

0.03

5

Hysteresis       %F.S

±0.05

6

Creep          (30min) %F.S

±0.05

7

Temp Effect On Zero     %F.S/10°C

≤0.005

8

Temp Effect On Output   %F.S/10°C

≤0.005

9

Zero Output       %F.S

±2

10

Input Resistance    Ω

400±30

11

Output Resistance   Ω

350±3

12

Insulation Resistance  MΩ

≥2000

13

Excitation Voltage    V(DC/AC)

5~12

14

Operation Temp Range °C

-30~+80

15

Overload capacity    %F.S

150

16

Capacity

1~20t

17

Degree Of protection

IP66









Characteristic:

1.high-quality alloy steel,chemical plating the nickel in surface.

2.simple structure, convenient to install and maintenance.

3.high sensitivity outputing.

4.high coomprehensive precision.

5.compact structure.

6.good long-term stability
