Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HMD
  • Model Number: 1005
  • Type: Miniature load cells
  • Power Supply: 220V working pressure
  • Precision: C2
  • Class sealing: IP66
  • Application: tension or compression
  • Safe overload: 150%

Packaging & Delivery

Packaging Details Export packing or according to your requirement
Delivery Time in stock

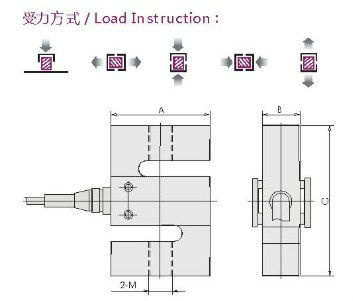

Tension and Compression S Type Load Cell





Technical Parameter



Model

TY1005

Comprehensive error

0.02

0.03

Output sensitivity                              mV/V

2.0±0.25%

Nonlinearity                                       %F.S.

±0.02

±0.03

Repeatability                                     %F.S.

0.02

0.02

Hysteresis                                         %F.S.

±0.02

±0.03

Creep                                          (30min) %F.S

±0.02

±0.03

Temp effect on zero                      %F.S/10°C

≤0.002

≤0.003

Temp effect output                        %F.S/10°C

≤0.002

≤0.003

Zero output                                   %FS

   ±1

   ±1

Input resistance                             Ω

400±30

Output resistance                           Ω

350±3

Insulation resistance                     MΩ

≥5000

Excitation voltage                     V(DC/AC)

  5~12V

Operation temp. Range                °C

     -30~+80

Overload capacity                       %F.S.

        150

Capacity

1~500kg

Degree of protection

   IP66





























































Characteristic:

1.high-quality alloy steel,chemical plating the nickel in surface.

2.simple structure, convenient to install and maintenance.

3.high sensitivity outputing.

4.high coomprehensive precision.

5.compact structure.

6.good long-term stability
