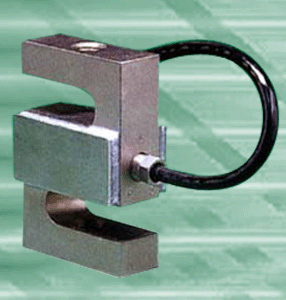

S type load cell

FOB Reference Price:Get Latest Price
US $32-145 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HMD/TY
Model Number:
HMD1005
Usage:
Pressure Sensor
Theory:
Capacitance Sensor
Output:
Analog Sensor
Certification:
ISO 9001:2008, Rohs
packing:
standard carton
material:
high quality alloy steel
plating:
nickel or zinc
usage:
batching scale, belt scale
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
international standard
Port
Ningbo or Shanghai

1. S model batching balance transducer:Simple structure load cell, convenient to install and maintenance 2.High comprehensive precision 3.Compact structure 4.Low setting height 5.Good long-term stability 6.High-quality alloy steel, plate the chromium in surface

Model HMD1005 S type weighing loadcell, measuring by shearing stress method,can bear both tension and compression.It has good output symmetry and well knit structure, can be installed easily. It can be used in making electromechanics combined balance, cliver balance, hopper balance and various kinds of special-purpose balances, craft balances,etc..

 MODEL

HMD1005

 COMPREHENSIVE ERROR

0.02

0.03

 OUTPUT SENSITIVITY            mV/V

2.0±0.25%

NONLINEARITY                      %F.S.

±0.02

±0.03

 REPEATABILITY                      %F.S.

0.02

0.02

HYSTERESIS                           %F.S.

±0.02

±0.03

 CREEP                           (30min) %F.S

±0.02

±0.03

TEMP. EFFECT ON ZERO     %F.S/10

≤0.002

≤0.003

TEMP. EFFECTOUTPUT   %F.S/10

≤0.002

≤0.003

ZERO OUTPUT                       %FS

   ±1

   ±1

 INPUT RESISTANCE                    Ω

400±30

 OUTPUT RESISTANCE                  Ω

350±3

INSULATION RESISTANCE             MΩ

≥5000

EXCITATION VOLTAGE      V(DC/AC)

   5~12

 OPERATION TEMP.  RANGE

     -30~+80

OVERLOAD CAPACITY              %F.S.

        150

CAPACITY

10~20000kg



IP66

  PERFORMANCE CHARACTERISTIC

HMD1005

Model HMD1005 S type weighing loadcell, measuring by shearing stress method,can bear both tension and compression.It has good output symmetry and well knit structure, can be installed easily. It can be used in making electromechanics combined balance, cliver balance, hopper balance and various kinds of special-purpose balances, craft balances,etc..
