Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HMD/TY
  • Model Number: HMD2006F
  • material: alloy or stainless
  • pack: international standard
  • Certification: ISO9001:2008,CE, ISO14001,Rohs,EWC,
  • capacity: 100kg~50ton
  • accuracy: 0.03
  • type: shear beam load cell
  • cable: 5m
  • manufacture: yuyao tongyong
  • brand: YUTONG
  • surface: plating

Packaging & Delivery

Packaging Details internaional standard packing
Delivery Time 25 days

shear beam load cell 50kg 100kg 200kg 300kg 400kg 500kg 1t 2t 3t 4t 5t 5t 7t 10t




Sales points/ Focus  :

*Quality always comes first

*Reasonable Prices

*OEM service provided

*Responsible after-sales service

*Aiming to get repeat orders from 80%customer after the trial orders

*Making progress with customers together


1, high- quality alloy steel tension and compression load cells, chemical plating the nickel in surface

2 simple structure , convenient to install and maintenance

3 high comprehensive precision

4 compact structure

5 low setting height

6good long -term stability


Different Shear beam  type optional

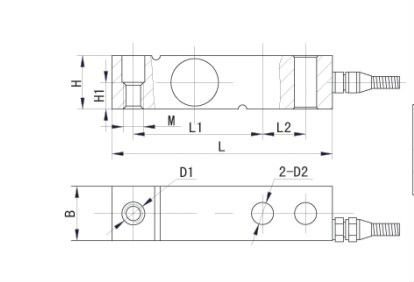

Dimension for different capacity



capacity( t)LL1L2HH1B   MD1D2









MODEL                             HMD2006F
COMPREHENSIVE ERRORC3        0.02          0.03
OUTPUT SENSITIVITY                                 mV/V2.0±0.25%
NONLINEARITY                                           %F.S.     ±0.02±0.03
REPEATABILITY                                         %F.S.0.020.02
HYSTERESIS                                                 %F.S.±0.02±0.03
CREEP                                                       (30min) %F.S±0.02±0.03
TEMP. EFFECT ON ZERO                     %F.S/10°C0.0020.003
TEMP. EFFECTOUTPUT                       %F.S/10°C0.0020.003
ZERO OUTPUT                                     %FS        ±1      ±1
INPUT RESISTANCE                               Ω             400±30
OUTPUT RESISTANCE                         Ω                                350±3
INSULATION RESISTANCE                 MΩ           5000
EXCITATION VOLTAGE                     V(DC/AC)                      5~12
OPERATION TEMP. RANGE             °C                                     -30~+80 ,  250
OVERLOAD CAPACITY                         %F.S.150
CAPACITY               0.5t~5t

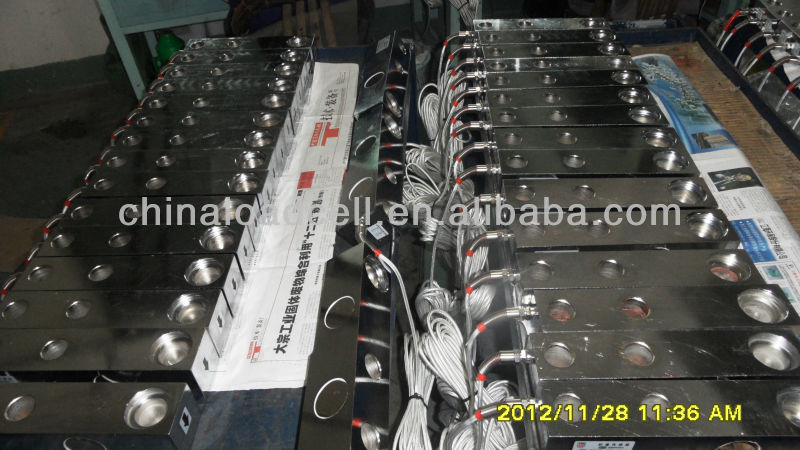

Recent orders



Load cells


with 20 years experiences,We can design and manufacture of hundreds of different kind of load cells:analogy load cell, high temperature load cell, digital load cells and so on, Most of load cells have patent,We guarantee the high quality with competitive price.




QC Team :
QC team with more than 20 professional and technical personnel. To ensure 100% products checking.

Material:  Strictly control of material using, meet international requested standards.

Semi-finished products inspection: Product inspection before 100% finished.

Production line test:  With work team or data engineer who will inspect machines and lines at fixed period.

Finished Product Inspection: Quality and property test before products are packed and loaded.


Certificated Approval :

EWC, CE, WSF, ROHS,We will get the OIML soon...


Gland type optional


We will reply your email or fax within 24 hours.
You can call us at any time if there is any question on our production.

If you want to know more information, please contact us without  hesitate.



Contact informaiton:

Contact person: Mr Jack Yao

Email: chinaloadcells@ aliyun.com

Phone: 008613685723918

Fax: 0086-574-62753107
