Precision Single Point Bellows Type load cell for belt scale

FOB Reference Price:Get Latest Price
US $55-80 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TY/HMD
Model Number:
HMD2002/TY2002
material:
alloy steel or stainless
packing:
foam box
Certification:
ISO9001:2008, RoHS
plating:
nickel and zinc
bellow material:
stainless
brand:
YUTONG
cable color:
black, red, green, white
lable:
standard or custom lable
accuracy:
0.03
cable length:
2m
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
international standard
Port
Ningbo or Shanghai
Lead Time :
25 days

Precision Single Point Bellows Type load cell for belt scale



Sales points/ Focus  :

*Quality always comes first

*Reasonable Prices

*OEM service provided

*Responsible after-sales service

*Aiming to get repeat orders from 80%customer after the trial orders

*Making progress with customers together



1, high- quality alloy steel tension and compression load cells, chemical plating the nickel in surface

2 simple structure , convenient to install and maintenance

3 high comprehensive precision

4 compact structure

5 low setting height

6good long -term stability

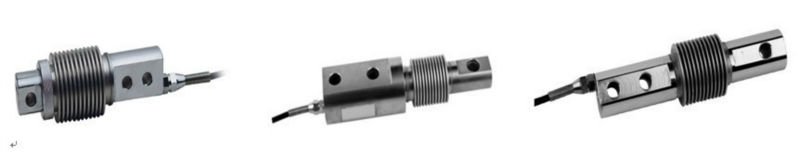

Different Shear beam  type optional






Dimension for different capacity

.jpg

 single beam load cell

MODEL

HMD2002

COMPREHENSIVE ERROR

0.02

0.03

OUTPUT SENSITIVITY                mV/V

2.0±0.005

NONLINEARITY                          %F.S.

±0.02

±0.03

REPEATABILITY                          %F.S.

0.02

0.02

HYSTERESIS                               %F.S.

0.02

0.03

CREEP                               (30min) %F.S.

±0.02

±0.03

TEMP. EFFECT ON ZERO         %F.S/10

 ≤0.002

≤0.003

TEMP. EFFECT ON OUTPUT  %F.S/10

 ≤0.002

≤0.003

ZERO OUTPUT                         mV/V

         ±1

INPUT RESISTANCE                       Ω

380±10

OUTPUT RESISTANCE                     Ω

       350±2

INSULATION RESISTANCE                 Ω

≥5000

EXCITATION VOLTAGE                V

      10

OPERATION TEMP.  RANGE

       -30+80

OVERLOAD CAPACITY                 %F.S.

         150

CAPACITY

10~200kg

RECOMMENDED  USE



BELT SCALE

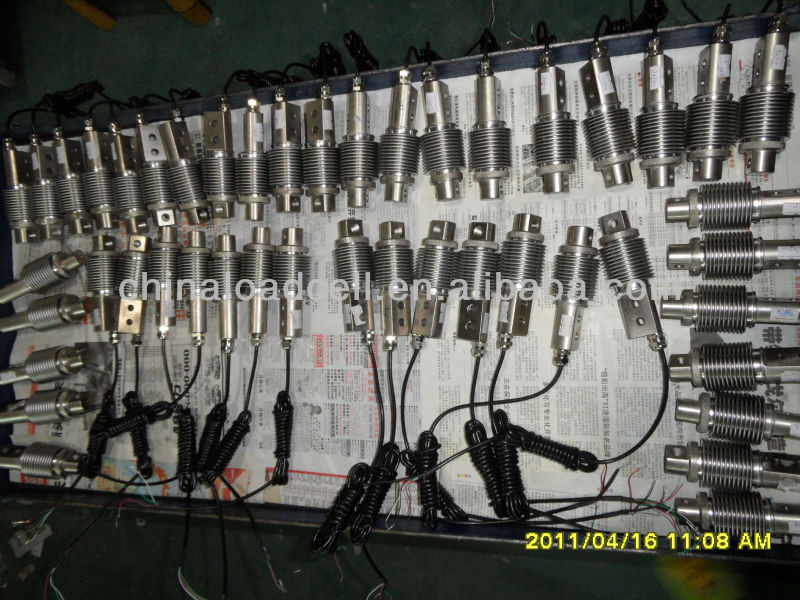

Load cells





with 20 years experiences,We can design and manufacture of hundreds of different kind of load cells:analogy load cell, high temperature load cell, digital load cells and so on, Most of load cells have patent,We guarantee the high quality with competitive price.







QC Team :
QC team with more than 20 professional and technical personnel. To ensure 100% products checking.

Material:  Strictly control of material using, meet international requested standards.

Semi-finished products inspection: Product inspection before 100% finished.

Production line test:  With work team or data engineer who will inspect machines and lines at fixed period.

Finished Product Inspection: Quality and property test before products are packed and loaded.



Certificated Approval :

EWC, CE, WSF, ROHS,We will get the OIML soon...




Gland type optional
