Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HMD
  • Model Number: LC-B3
  • Usage: Pressure Sensor
  • Theory: Capacitance Sensor
  • Output: Analog Sensor
  • Certification: ISO9001:2008, Rohs
  • material: aluminum alloy
  • packing: international standard
  • accuracy: 0.02%

Packaging & Delivery

Packaging Details standard
Delivery Time 15 working days

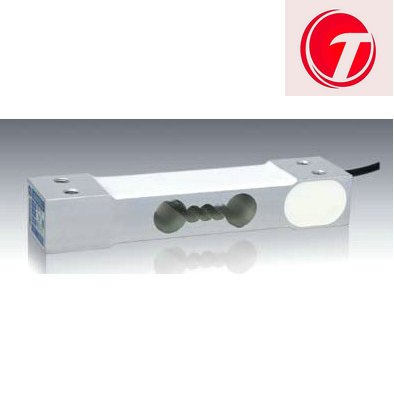

 single point aluminium load cell with High comprehensive precision, strong capacity of overloading and good sealing. Wide working temperature, easy to install and debug. Applied to industry weighing system such as bathroom scale and kitchen scale and so on.



2,Specification:
Item
Rated load 3~250kg
Dimension22*30*130
Accuracy ClassB
Rated output2.0mv/V±10%
Zero Balance±0.05mV/V
Non-linearity±0.02%R.O.
Hysteresis,Non-repeatability±0.015%R.O.
Creep in 2 min.±0.015%R.O./2Min
Temp.Effect on output±0.03%R.O./10°C
Temp.Effect on zero±0.03%R.O./10°C
Input Resistance 405±10Ω
Output Resistance 350±3Ω
Safe Overload150%.R.C
Insulation Resistance ≥5000MΩ
Compensation Temp.Range -10to+40°C
Operating Temp.Range -20to+60°C
Excitation,Recommended5~12VDC
Excitation,Maximum18VDC
Cable lengthφ4*42cm
0, 5, 26, 135, 8, 0, 26, 135
3,Color code of cable
Bitmap
