Quick Details

  • Place of Origin: china
  • Brand Name: HMD/TY
  • Model Number: HMD1005/HMD1005B
  • Usage: Pressure Sensor
  • Theory: Resistance Sensor
  • Output: Analog Sensor
  • Certification: ISO9001:2008, Rohs,CE, EWC,WSF
  • material: alloy steel, stainless
  • packing: international standard
  • plate: with chrominum or nickel

Packaging & Delivery

Packaging Details international standard packing
Delivery Time 18 work days

Specifications

1,S type load cell
2,Capacity range from 10kg-20000kg
3,OEM accepted
4, Accuracy: C3 class
5, More than 20 years experience

Load cells



with 20 years experiences,We can design and manufacture of hundreds of different kind of load cells:analogy load cell, high temperature load cell, digital load cells and so on, Most of load cells have patent,We guarantee the high quality with competitive price.







Sales points/ Focus  :

*Quality always comes first

*Reasonable Prices

*OEM service provided

*Responsible after-sales service

*Aiming to get repeat orders from 80%customer after the trial orders

*Making progress with customers together



 high- quality alloy steel tension and compression load cells, chemical plating the nickel in surface2 simple structure , convenient to install and maintenance3 high comprehensive precision 4 compact structure5 low setting height6good long -term stability

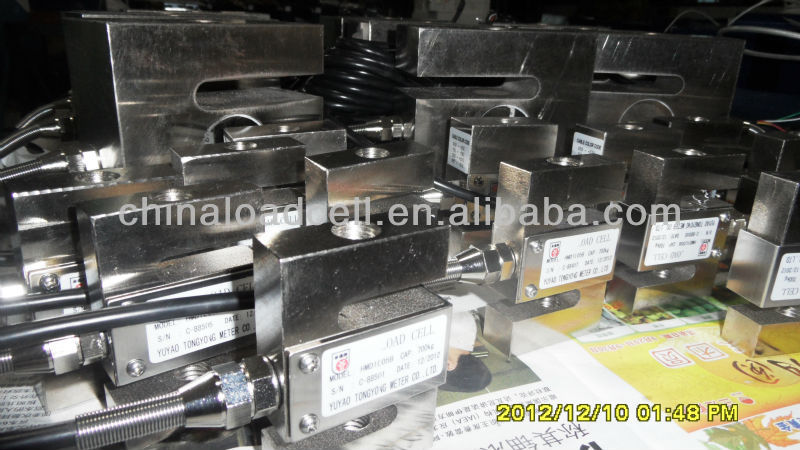

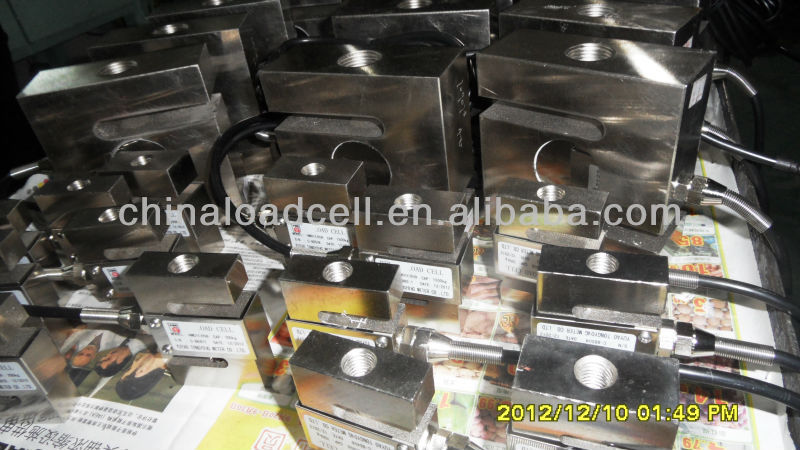

Different S type optional



MODEL

HMD1005

COMPREHENSIVE ERROR

0.02

0.03

OUTPUT SENSITIVITY                     mV/V

2.0±0.25%

NONLINEARITY                              %F.S.

±0.02

±0.03

REPEATABILITY                             %F.S.

0.02

0.02

HYSTERESIS                                 %F.S.

±0.02

±0.03

CREEP                                         (30min) %F.S

±0.02

±0.03

TEMP. EFFECT ON ZERO              %F.S/10

≤0.002

≤0.003

TEMP. EFFECTOUTPUT                 %F.S/10

≤0.002

≤0.003

ZERO OUTPUT                             %FS

   ±1

   ±1

INPUT RESISTANCE                      Ω

400±30

OUTPUT RESISTANCE                  Ω

350±3

INSULATION RESISTANCE           MΩ

≥5000

EXCITATION VOLTAGE                 VDC/AC

   512

OPERATION TEMP.  RANGE

     -30+80

OVERLOAD CAPACITY                  %F.S.

        150

CAPACITY

10-20000kg



IP67













PERFORMANCE CHARACTERISTIC

HMD1005,,,,,..



Model HMD1005 S type weighing loadcell, measuring by shearing stress method,can bear both tension and compression.It has good output symmetry and well knit structure, can be installed easily. It can be used for tension or compression applications for precision weight and force measurements. Applications might include conveyor scales, check weighers, and counting scales. etc..

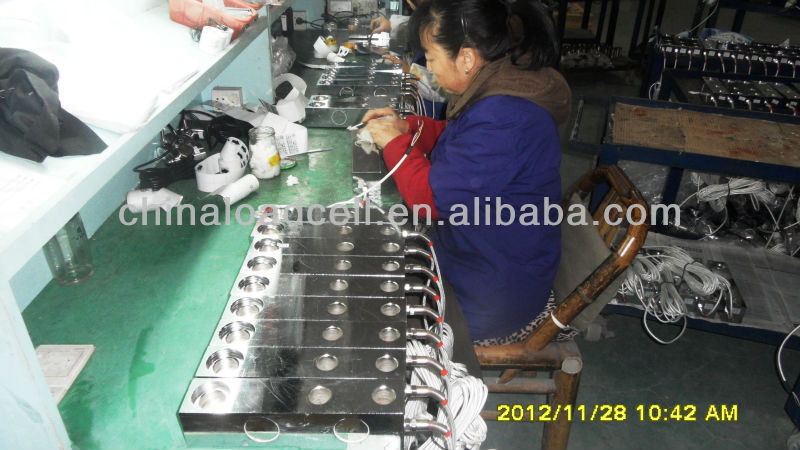

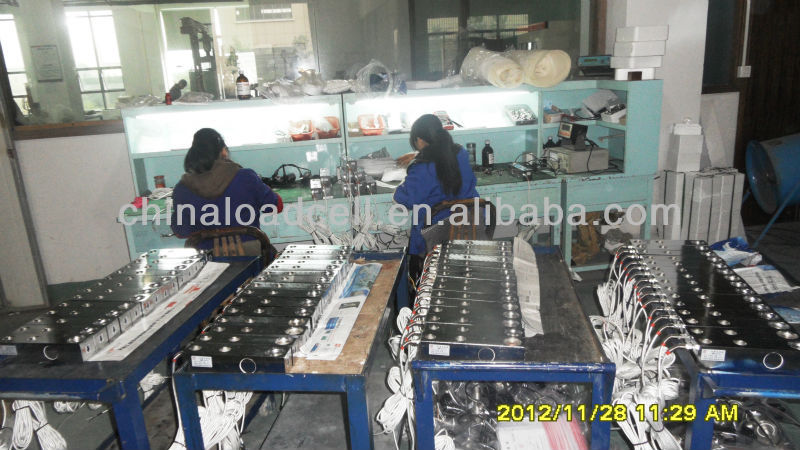

QC Team :
QC team with more than 20 professional and technical personnel. To ensure 100% products checking.

Material:  Strictly control of material using, meet international requested standards.

Semi-finished products inspection: Product inspection before 100% finished.

Production line test:  With work team or data engineer who will inspect machines and lines at fixed period.

Finished Product Inspection: Quality and property test before products are packed and loaded.



Certificated Approval :

EWC, CE, WSF, ROHS,We will get the OIML soon...





 cleaning the lableing the goods when they are finished

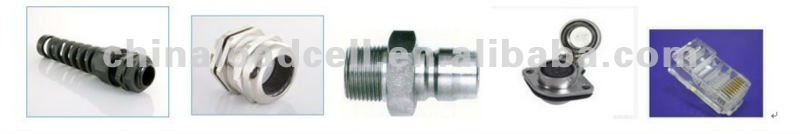

Gland type optional

Contact
We will reply your email or fax within 24 hours.
You can call us at any time if there is any question on our production.


If you want to know more information, please contact us without  hesitate.



Following the link to get more details:

http://www.cncells.com/e-disproduct.asp?pro_id=7&typeid=1
