Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HMD
  • Model Number: HMD2015CC5
  • Usage: Pressure Sensor
  • Theory: Resistance Sensor
  • Output: Analog sensor
  • Material: -A:Alloy steel;-SS: stainless steel;
  • Sealing class: IP67/IP68
  • Capacity: 10t/15t/20t/30t/40t/50t
  • Output resistance: 700ohm
  • Safe overload: 150%

Packaging & Delivery

Packaging Details Standard carton packing or according to your requirement.
Delivery Time in 20 days

 Load Cells

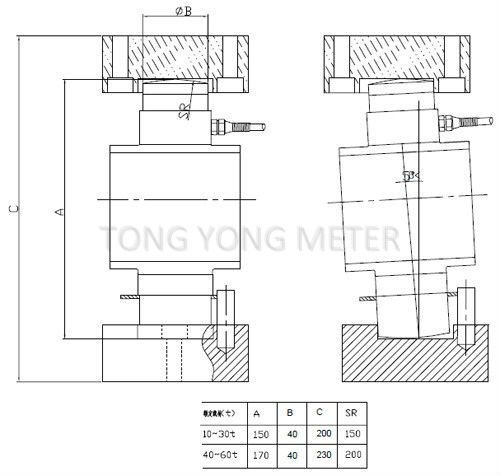

Dimensions:

Product Characteristics:
HMD2015  type is a stainless steel or alloy steel self centering rocker column load celsl with complete hermetic sealing. GS409 is available in capacities ranging from 15t to 100t.It easy to install and maintain to provide real cost advantages for both new installations and retrofit projects. It is a perfect fit for use in harsh industrial environments. Application in weighbridges, hoppers, tanks and silos.





Technical Parameter:



Rated load

10/15/20/30/40/60/100t

Sensitivity

(2.0±0.1%) mV/V

Combined error

±0.05% F.S

Creep Error(30min)

±0.02% F.S

Zero balance

±1% F.S

Temp. effect on zero:

±0.017% F.S/10°C

Temp. effect on span:

±0.017% F.S/10°C

Input resistance:

750±5Ω

Output resistance:

702±2Ω

Insulation resistance:

≥5000MΩ

Operating Tem. Range

-30~+70°C

Maximum safe over load:

150%F.S

Ultimate over load:

250%F.S

Recommend excitation:

10~12V DC

Maximum excitation:

15V DC

Sealing Class:

IP67/IP68

Element material:

-A: Alloy Steel, -SS: Stainless Steel

Cable:

Length=12m(7.5~22.5t), 18m(30~300t)

Citation

GB/T7551-1997/ OIML R60

Mode of Connection

Red(Input+),Black(Input-),Green(Output+),White(Output-)
