spoke type load cell/truck scale load sensor

FOB Reference Price:Get Latest Price
US $65-125 / Pieces | 5 Piece/Pieces We can produce according to your requirement (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HMD
Model Number:
2004RTN
Usage:
Pressure Sensor
Theory:
Resistance Sensor
Output:
Analog sensor
Applicable platform:
Platform Scale, Hopper scale, railway scale
Rated load:
1-470t
Comprehensive error:
±0.02%F.S
Accuracy:
C3
Customization:
accept
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Carton Packing or according to your requirement
Port
Ningbo or Shanghai
Lead Time :
20-30 days according to your order quantity

Specifications

1, More than 20 years experience
2, Certification:CE,MA,MC,ROHS
3,Precisiom:C3
4,Material:Alloy Steel/Stainless Steel



Wheel/spoke type loadcell

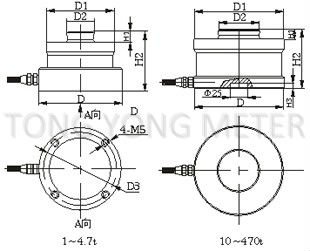

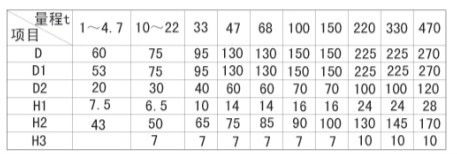

Dimension:







HMD2004RTN_a






Company Introduction:





with 20 years experiences,We can design and manufacture of hundreds of different kind of load cells:analogy load cell, high temperature load cell, digital load cells and so on, Most of load cells have patent,We guarantee the high quality with competitive price.

.jpg



Specification:





Rated Load1-470t
Rated Output1.85~1.90±0.001MV/V
Total Error±0.02%F.S
Creep(30minutes)±0.02%F.S
Recommended Excitation Voltage5V~18V(AC or DC)
Maximum Excitation Voltage24V(AC or DC)
Zero Balance±1%F.S
Input Impedance775±5Ω
Output Impedance700±2Ω
Insulation Impedance≥5000MΩ
Safe Overload150%F.S
Ultimate Overload200%F.S
Operating Temperature Range(-30~+70)°C
Compensated Temperature Range(-20~+60)°C
Temperature Effect On Load±0.02%F.S/10°C
Temperature Effect On Zero±0.02%F.S/10°C
ConstructionAlloy Steel
Protection ClassIP68&IP67
CitationGB/T7551-2008/OIML R60
Mode of ConnectionInput+:Red
Input-:Black
Output+:Green
Output-:White



Different  Shear beam load cell type optional

.jpg



Characteristic:

1.high-quality alloy steel,chemical plating the nickel in surface.

2.simple structure, convenient to install and maintenance.

3.high sensitivity outputing.

4.high coomprehensive precision.

5.compact structure.

6.good long-term stability





Certificated Approval :

EWC, CE, WSF, ROHS,We will get the OIML soon...

QC Team :
A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.

Material:  Strictly control of material using, meet international requested standards.

Semi-finished products inspection: Product inspection before 100% finished.

Production line test:  With work team or data engineer who will inspect machines and lines at fixed period.

Finished Product Inspection: Quality and property test before products are packed and loaded.

.jpg

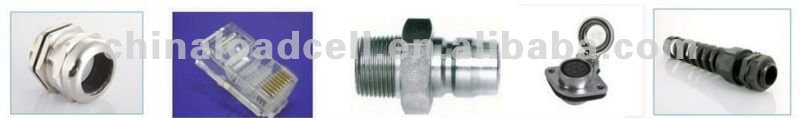

Gland type optional

.jpg
